Product Description
Overview
Piezo ceramic produces ultrasonic resonance of under the excitation voltage, which triggers the ultrasonic vibration of the metal diaphragm and atomization of the liquid adsorbed on the metal diaphragm.Piezo ultrasonic micro hole atomizer can be driven at 3 ~ 5VDC low voltage or via USB, without heating or adding any chemical reagent, compared with traditional heating atomization, energy saving is about 90%.
Features
Low noise
Low power consumption
Super fine mistparticles
Long operation life
Applications
Humidification in home、office and car
Aromatherapy and Air disinfectionatomizer
Mesh medical atomizer

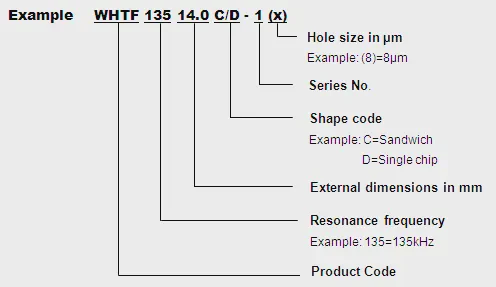

Part Numbering

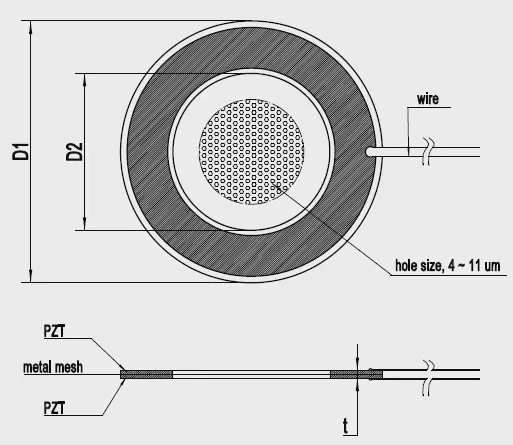

Dimensions
Specification
| Model | Material of mesh | Hole Size | Atomizing
Capacity | Resonance
Frequency | Electrical
capacitance | Impedance | Driving voltage | OD /D1 | Thickness/t |
| [ μm ] | [ml/min ] | [ KHz ] | [ nF ] | [Ω] | [Vp-p] | [ mm ] | [ mm ] | ||
|
| Purewater |
| ±30% |
| ±10% | ±0.3 | ±0.05 | ||
| WHTF135-14.0C-1(6) | SUS304 | 6±1 | 0.35 | 135±8 | 3.5 | ＜100 | 50 | 14 | 0.6 |
| WHTF135-14.0C-1(8) | SUS304 | 8±1 | 0.7 | 135±8 | 3.5 | ＜100 | 50 | 14 | 0.6 |
| WHTF135-14.0C-1(10) | SUS304 | 10±1 | 1.15 | 135±8 | 3.5 | ＜100 | 50 | 14 | 0.6 |
| WHTF135-14.0C-1(12) | SUS304 | 12±1 | 1.75 | 135±8 | 3.5 | ＜100 | 50 | 14 | 0.6 |
| WHTF113-16.0C-1(6) | SUS304 | 6±1 | 0.47 | 113±8 | 4 | ＜100 | 50 | 16 | 0.6 |
| WHTF113-16.0C-1(8) | SUS304 | 8±1 | 1.6 | 113±8 | 4 | ＜100 | 50 | 16 | 0.6 |
| WHTF113-16.0C-1(10) | SUS304 | 10±1 | 2.6 | 113±8 | 4 | ＜100 | 50 | 16 | 0.6 |
| WHTF113-16.0C-1(12) | SUS304 | 12±1 | 3.5 | 113±8 | 4 | ＜100 | 50 | 16 | 0.6 |
| WHTF113-20.0C-1(6) | SUS304 | 6±1 | 0.96 | 113±10 | 6.5 | ＜100 | 50 | 20 | 0.6 |
| WHTF113-20.0C-1(8) | SUS304 | 8±1 | 2.75 | 113±10 | 6.5 | ＜100 | 50 | 20 | 0.6 |
| WHTF113-20.0C-1(10) | SUS304 | 10±1 | 4.3 | 113±10 | 6.5 | ＜100 | 50 | 20 | 0.6 |
| WHTF113-20.0C-1(12) | SUS304 | 12±1 | 6.95 | 113±10 | 6.5 | ＜100 | 50 | 20 | 0.6 |
*Customize onrequest.
