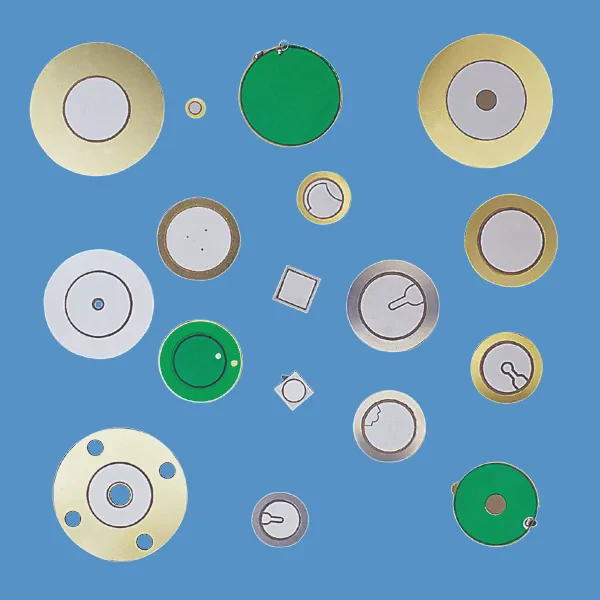

Piezo Buzzer Plate

Product Introduction

High-performance piezoelectric design for reliable sound generation
Compact and thin structure for easy integration into electronic devices
Low power consumption with efficient acoustic output
High sensitivity and stable vibration performance
Wide operating frequency range for various alert and notification applications
Excellent durability with long service life and consistent performance
Fast response time for instant audio signal feedback
Lightweight design suitable for portable and compact products
Strong resistance to environmental conditions including humidity and temperature changes
Ideal for alarms, electronic devices, control panels, meters, and safety systems

Product Description

                                 <span><strong>Features</strong></span>

High sensitivity and low energy consumption

High reliability and stability
Long servicetime and wide temperature adaptive
Compact size

High pressure resistance

Scope of applications

PiezoBuzzer,SounderandAlarmdevice

ElectricSphygmomanometer

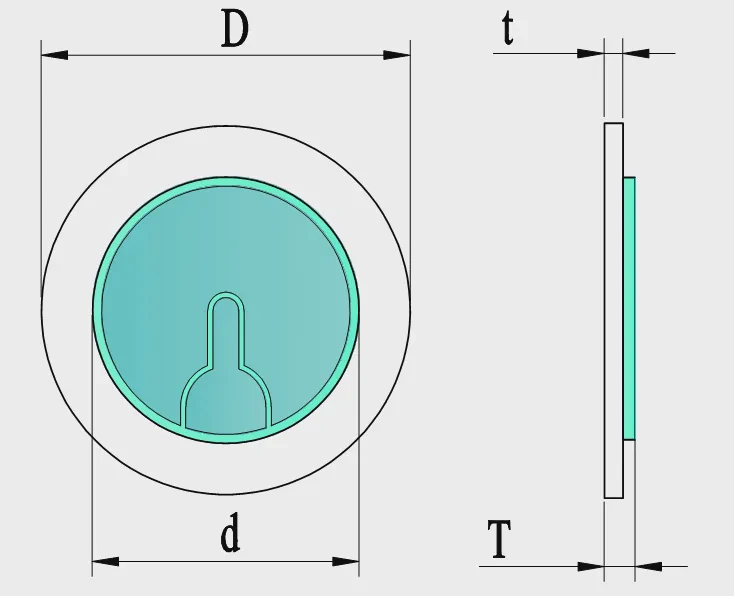

Dimensions

Specification

Model	Resonant Frequency fo[KHz]	Resonant Impedance R[Ω]	Electrical capacitance C[nF]	Driving Voltage V[≤Vp-p]	Dimensions D×d×T*t [mm]	Substrate material
FT-11T-8.0A1-5	8.0±0.5	500	12±30 %	30	Φ11×Φ8×0.16×0.075	Copper
FT-15T-4.3A1-1	4.3±0.6	600	21±30 %	30	Φ15×Φ11.3×0.16×0.09	Copper
FT-15T-4.3A1-3	4.3±0.5	400	28±30 %	30	Φ15×Φ12×0.15×0.08	Copper
FT-15T-4.4A1-2	4.4±0.5	400	27±30 %	30	Φ15×Φ11×0.15×0.08	Copper
FT-20.2T-3.6A1-1	3.6±0.6	500	20±30 %	30	Φ20.2×Φ14×0.22×0.12	Copper
FT-31N-1.3A1-1	1.3±0.3	800	40±30 %	30	Φ31×Φ20×0.20×0.10	Nickel alloy
FT-31T-3.9A1-6	3.9±0.3	500	45±30 %	30	Φ31×Φ20×0.22×0.10	Copper
FT-11.2N-6.8A1-20	6.8±0.7	800	16±30 %	30	Φ11.2×Φ9×0.11×0.05	Nickel alloy
FT-12N-5.5A1-21	5.5±0.5	1000	13±30 %	30	Φ12×Φ9×0.09×0.04	Nickel alloy
FT-12N-6.8A1-20	6.8±0.5	1000	15±30 %	30	Φ12×Φ9.4×0.12×0.05	Nickel alloy
FT-12T-7.9A1-20	7.9±0.5	600	10±30 %	30	Φ12×Φ9×0.18×0.09	Copper
FT-15N-4.1A1-22	4.1±0.5	500	22±30 %	30	Φ15×Φ11×0.11×0.05	Nickel alloy
FT-15N-5.0A1-20	5.0±0.4	500	20±30 %	30	Φ15×Φ11×0.17×0.10	Nickel alloy
FT-15N-6.5A1-20	6.2±0.4	300	15±30 %	30	Φ15×Φ12×0.22×0.10	Nickel alloy
FT-20T-3.8A1-20	3.8±0.4	500	20±30 %	30	Φ20×Φ15×0.20×0.11	Copper
FT-27T-3.9A1-30	3.9±0.2	200	22±30 %	120	Φ27×Φ20×0.43×0.25	Copper
FT-50T-2.8A1-36-W	2.8±0.5	600	35±30 %	120	Φ50×Φ25×0.41×0.20	Copper
FT-14.2N-4.5D1-20	4.5±0.5	500	14±30 %	30	Φ14×Φ12×0.19×0.10	Nickel alloy
FT-23.3T-4.2A6-1	4.2±0.4	70	160±30 %	30	Φ23.3×Φ23×0.42×0.16	Copper
FT-23.5T-3.9A6-3	3.9±0.4	40	≥120	30	Φ23.5×Φ23×0.38×0.14	Copper
FT-32T-2.3A6-31	2.3±0.3	100	240±30 %	50	Φ32×Φ31.5×0.46×0.10	Copper
FT-31.8T-3.0A3-30	3.0±0.3	70	160±20 %	65	Φ31.8×Φ31.1×0.61×0.11	Copper
FT-31.8T-3.0A3-35	3.0±0.3	70	160±20 %	65	Φ31.8×Φ31.1×0.61×0.11	Copper
FT-31.8T-3.2A3-31	3.2±0.3	70	160±25 %	65	Φ31.8×Φ31.1×0.65×0.15	Copper
FT-31.8N-2.3A3-34	2.3±0.4	100	250±30 %	80	Φ31.8×Φ31.1×0.55×0.10	Nickel alloy
