Product Description
<span><strong>Features</strong></span>
Compact size
High reliability
High energy conversion
Scope of applications
Beauty instrument

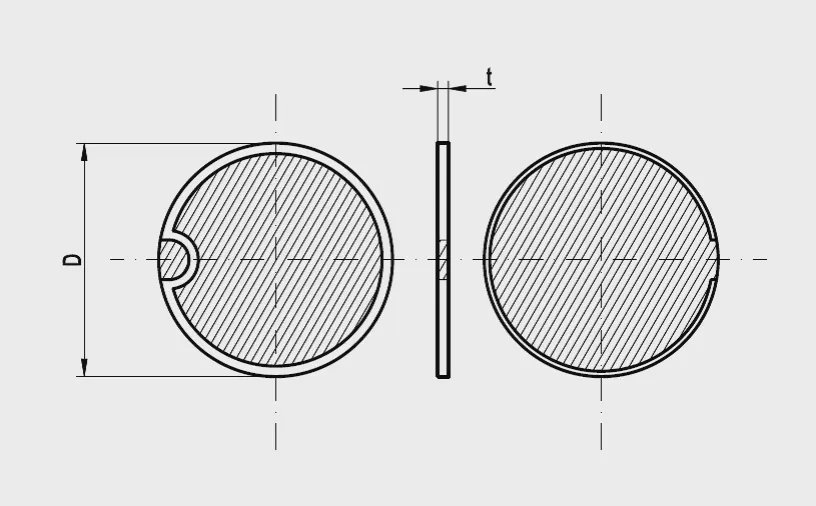

Dimensions
Specification
| Model | Dimensions | Electrical capacitance | Electromechanical
couplingfactor | Resonant Frequency | Equivalent Resistance |
| D×t | @1KHz、1V | Kp | Fr | R0 | |
| [mm] | [nF]±25% | [%] | [MHz]±5% | [Ω] | |
| HNYA28-2.04-1 | Φ28×2.04 | 3 | ≥52 | 1 | ≤3.5Ω |
| HNYA28-1.02-1 | Φ28×1.02 | 6 | ≥54 | 2 | ≤3.5Ω |
| HNYA25-0.41-1 | Φ25×0.41 | 12.3 | ≥56 | 5 | ≤2.5Ω |
| HNYA20-0.41-1 | Φ20×0.41 | 7.9 | ≥56 | 5 | ≤2.5Ω |
| HNYA20-0.67-1 | Φ20×0.67 | 5.2 | ≥56 | 3 | ≤2.5Ω |
| HNYA16-0.41-1 | Φ16×0.41 | 2.45 | ≥48 | 5 | ≤3.5Ω |
*Customize on request.
