Rectangular Multilayer Piezo Actuators PTJ150 series Rectangular Multilayer Piezo Actuators

Product Introduction

Model: PTJ150 series
Brand: PANT
Shape: Rectangular and Square
Certifications: CE, RoHS, SGS ISO9001
Working voltage: -20 to 150V DC
Operating temperature range: -20 to 120℃
Wire lead: red is electrode (+), and black is cathode (-)
Recommended preload for dynamic operation: 15MPa
Maximum preload for constant force: 20MPa

Product Description

                                 <span><strong>Features</strong></span>

 <p> <span><img src="https://szutl.net/uploads/202607/17/ab91846c37e03012.webp" class=" lazyimg"/></span><span><span>Compact size</span></span>

Accurate positioning in nm

High-speed response in ms
Largeblockingforce

High energyconversion efficiency, low power consumption and no electromagnetic noise
Easy to be controlled by voltage

Scope of applications

Precision mechanics and mechanical engineering
Life sciences,Medicine and Biology
Pneumatic&Hydraulic valves
Nano positioning/high-speed switching
Active and Adaptive optics

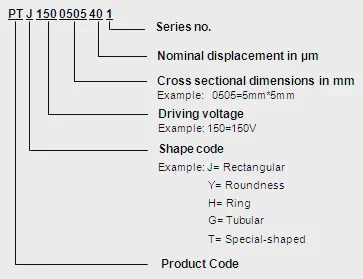

Part Numbering

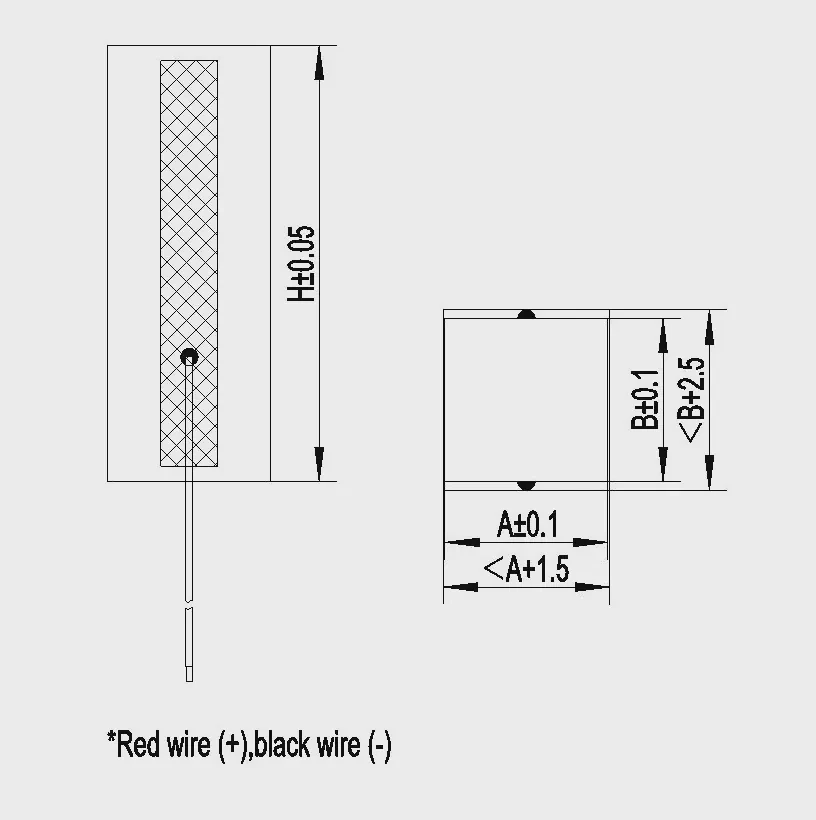

Dimensions

Specification

Model	Dimensions	Nominal displacement	Blocking force	Stiffness	Electrical capacitance	Resonance Frequency
A×B×H [mm]	[um@150V]	[N@150V]	[N/um]	[uF]	[kHz]
±0.05	±10%			±20%	±20%
PTJ1500303041	3×3×5	4	330	80	0.14	300
PTJ1500303051	3×3×6	5	330	66	0.18	250
PTJ1500303101	3×3×10	10	330	33	0.3	150
PTJ1500303181	3×3×18	18	330	18	0.5	83
PTJ1500505031	5×5×4	4	900	225	0.38	375
PTJ1500505051	5×5×6	5	900	180	0.55	250
PTJ1500505101	5×5×10	10	900	90	0.8	150
PTJ1500505201	5×5×18	20	900	45	1.5	83
PTJ1500505202	5×5×20	22	900	41	1.8	74
PTJ1500505301	5×5×28	30	900	30	2.4	53
PTJ1500505311	5×5×31	31	900	30	2.6	50
PTJ1500505401	5×5×36	40	900	28	3	42
PTJ1500505402	5×5×34	40	900	28	2.9	44
PTJ1500505403	5×5×40	44	900	20	3.6	37
PTJ1500505601	5×5×54	60	900	15	4.5	28
PTJ1500707101	7×7×10	10	1800	180	2.0	150
PTJ1500707201	7×7×18	20	1800	90	3.2	83
PTJ1500707301	7×7×28	30	1800	60	5.5	53
PTJ1500707361	7×7×30	36	1800	50	6	50
PTJ1500707362	7×7×30	36	1800	50	6	50
PTJ1500707381	7×7×32	38	1800	47	6.2	47
PTJ1500707401	7×7×36	40	1800	45	6.4	42
PTJ1500707501	7×7×42	50	1800	36	7.2	36
PTJ1500707601	7×7×54	60	1800	30	9	36
PTJ1500707701	7×7×60	70	1800	25	10	36
PTJ1501010101	10×10×10	10	3600	360	3.8	150
PTJ1501010201	10×10×18	20	3600	180	7.5	83
PTJ1501010301	10×10×28	30	3600	120	12	53
PTJ1501010401	10×10×36	40	3600	90	15	42
PTJ1501010501	10×10×46	50	3600	72	19	33
PTJ1501010601	10×10×54	60	3600	66	22.5	28
PTJ1501414101	14×14×10	10	7200	720	6.2	150
PTJ1501414201	14×14×20	20	7200	360	13.1	75
PTJ1501414301	14×14×30	30	7200	240	19.3	50
PTJ1501414401	14×14×40	40	7200	180	26.2	37

* Customizeon request.
*All specifications are subject to changes, please check with PANT before ordering.

Materials performance data

                                <table> <tbody> <tr> <td> <strong>Key Technical Index</strong></td> <td> <strong>Unit</strong></td> <td> <strong>Value</strong></td> </tr>

Relative dielectric constantε_r3^T - 3500±20% Electromechanical coupling factor Kp - 70% Longitudinal piezoelectric strain coefficient d₃₃ 10^-12C/N ≥650 Piezoelectric voltage constant g₃₃ 10^-3Vm/N 17 Elastic flexible coefficient S₁₁^E 10^-12m²/N 14.3 Elastic flexible coefficient S₃₃^E 10^-12m²/N 18.5 Dielectric loss tgδ 10^-3 ≤1.5 Mqualityfactor Qm - 45 Curietemperature T_C ℃ 240 Density ρ g/cm³ 7.9
