Product Description
<span><strong>Features</strong></span>
Compact size, low power consumption
Largedisplacement, quickresponse, high reliability
Scope of applications
Jacquard comp(E14/E18/E20/E22/E24/E28/E30/E32)ofWarp knitting machine

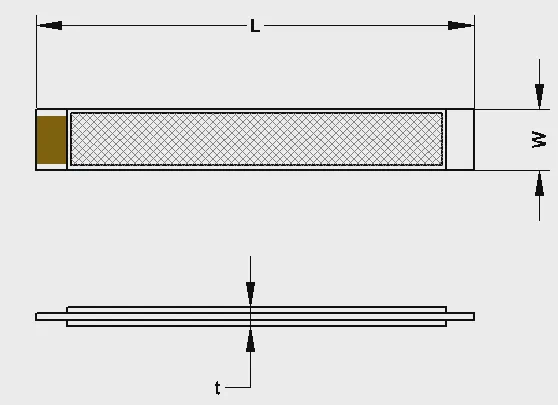

Dimensions
Specification
| Model | Dimensions | Nominal displacement | Blocking force | Leakage current | Electrical capacitance |
| L×W×t[mm] | [mm@1Hz] | [mN] | [uA] | [uF@1V, 100Hz] | |
| QDTE52-7.0-0.82-1 | 52×7.0×0.82 | ≥0.9 | ≥300 | ≤0.5 | 36~54 |
| QDTE52-7.0-0.82-3 | 52×7.0×0.82 | ≥1.2 | ≥300 | ≤0.5 | 40~62 |
* Operating temp. range :-10℃～+70℃ Operating voltage: 190V DC Frequency≤25Hz Relativehumidity:≤80%
Customizeon request
