85db Active Circuit Driven SMD Buzzer LET8536CS Manufacturer Factory & Supplier

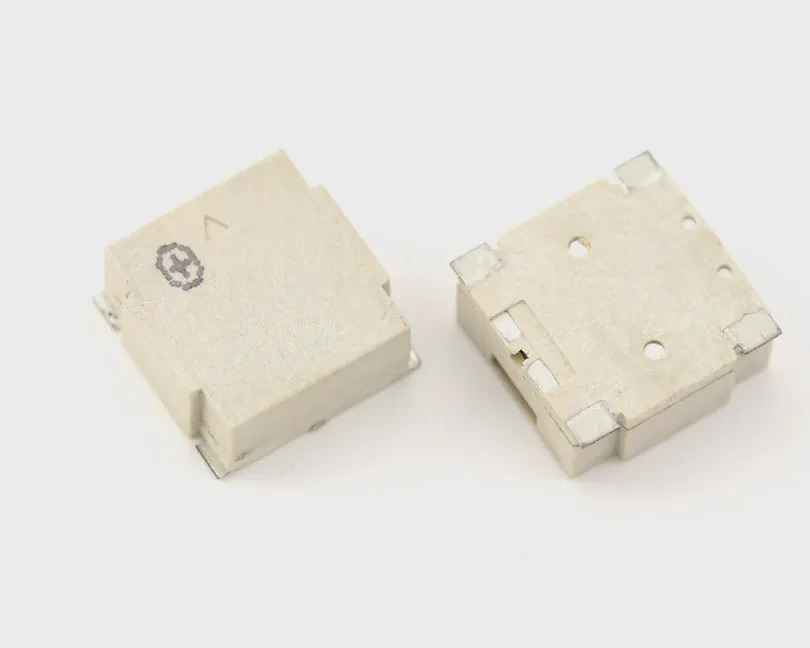

85db Active Circuit Driven SMD Buzzer LET8536CS

Product Introduction

Model：LET8536CS-03L-2.730-18-R
Active circuit driven SMD buzzer LET8536CS designed for compact electronic devices
Small dimension structure suitable for high-density PCB integration
Light weight design for portable and space-saving electronic applications
Tape and reel package suitable for automated SMT production lines
High sound output up to 85dB for clear alert signaling
Widely used in home appliances such as refrigerators for warning signals
Suitable for TVs providing audio feedback and system alerts
Ideal for coffee machines requiring operational sound indication

Products Details

Model	LET8536CS-03L-2.730-18-R
Rated Voltage	3Vp-p
Operating Voltage	2~5Vp-p
Rated Current	≤80mA
Coil Resistance	18±3Ω
Sound Output at10cm	≥87dB @10cm
Resonant Frequency	2730Hz
Operating Temperature	-40～+105℃
Storage Temperature	-40～+120℃
Weight	0.5g
Carton size	34.53536.5cm
Quantity	10000 pcs
Gross Weight	10.26Kg

FAQ

What is 85dB Active Circuit Driven SMD Buzzer LET8536CS?

85dB Active Circuit Driven SMD Buzzer LET8536CS is a compact active buzzer with built-in circuit design, providing stable 85dB sound output for electronic appliances.

What is the sound level of 85dB Active Circuit Driven SMD Buzzer LET8536CS?

85dB Active Circuit Driven SMD Buzzer LET8536CS delivers a loud sound output of up to 85dB, ensuring clear and effective alert signals.

What are the main features of 85dB Active Circuit Driven SMD Buzzer LET8536CS?

85dB Active Circuit Driven SMD Buzzer LET8536CS features small size, light weight, active circuit driving, and tape and reel packaging for SMT assembly.

Where can 85dB Active Circuit Driven SMD Buzzer LET8536CS be used?

85dB Active Circuit Driven SMD Buzzer LET8536CS is widely used in refrigerators, TVs, coffee machines, and various home appliances.

Is 85dB Active Circuit Driven SMD Buzzer LET8536CS suitable for SMT production?

Yes, 85dB Active Circuit Driven SMD Buzzer LET8536CS comes in tape and reel packaging, making it fully compatible with automated SMT production lines.

Why choose 85dB Active Circuit Driven SMD Buzzer LET8536CS for home appliances?

85dB Active Circuit Driven SMD Buzzer LET8536CS is ideal for home appliances due to its compact size, stable performance, and clear 85dB sound output.

What type of buzzer is LET8536CS?

LET8536CS is an active circuit driven SMD buzzer, meaning it includes an internal driving circuit for easier integration into electronic systems.

Can 85dB Active Circuit Driven SMD Buzzer LET8536CS be used in consumer electronics?

Yes, 85dB Active Circuit Driven SMD Buzzer LET8536CS is widely used in consumer electronics such as TVs and coffee machines for sound alerts and notifications.
