Products Details
| Rated Voltage | 12v |
| Input Type | Standard |
| Sound Pressure Level (SPL) | 95dB |
| Operating Mode | Standard |
| Ingress Protection | Standard |
| Technology | Standard |
| Termination | Standard |
| Output Type | Standard |
| Duration | Standard |
| Material | carton |
| Mounting Type | Standard |
| Size / Dimension | Standard |
| Description | Standard |
| Frequency | 3500 |
| Application | Consumer Electronics |
| Voltage - Rated | 12V |
| Series | Standard |
| Features | Standard |
| Port Location | Standard |
| Current - Supply | Standard |
| Driver Circuitry | Standard |
| Name | BPC2312W100 |
| Other name | TAT BP3075 1v 2800HZ Piezoelectric Ceramic Buzzer |
| Operating Voltage | 3~28V |
| Rated Current | 30mA(MAX) |
| Sound Output at 10cm | ≥95dB |
| Resonant Frequency | 3500Hz |
| Tone | Continuous |
| Operating Temperature | -20℃ to70℃ |
| Storage Temperature | -30℃ to 80℃ |
| Net Weight | Approx 4.2g |
FAQ

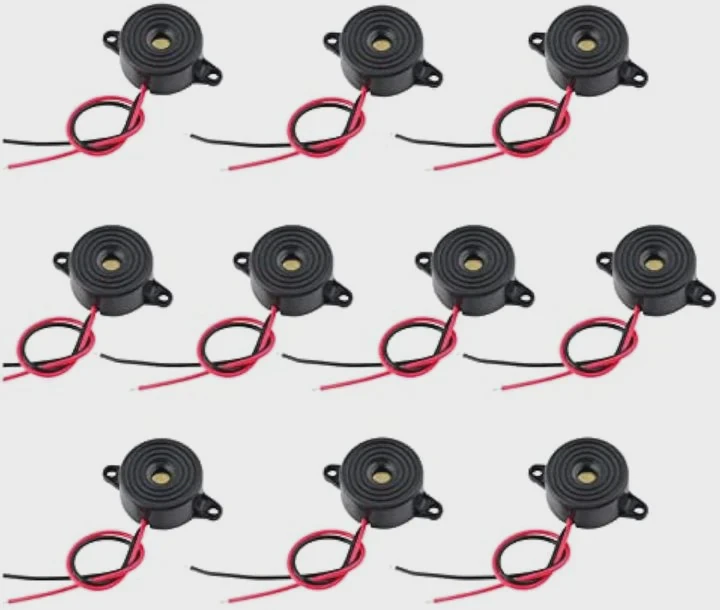

1. What is a 23x12mm 12V 3.5kHz active piezo buzzer?
A 23x12mm 12V 3.5kHz active piezo buzzer is a compact active buzzer with built-in drive circuitry that produces a clear 3.5kHz sound for alarms and alerts.
2. How does an active piezo buzzer work?
An active piezo buzzer works with an internal oscillator, so it sounds when 12V power is applied, making wiring and installation simple.
3. What voltage does this active buzzer require?
This active piezo buzzer is designed for 12V operation, making it suitable for many electronics, control systems, and industrial devices.
4. What is the sound frequency of this piezo buzzer?
The buzzer outputs a 3.5kHz tone, which provides a sharp and noticeable audible alert for warning applications.
5. Where can a 12V active piezo buzzer be used?
A 12V active piezo buzzer is commonly used in alarms, control panels, machines, security systems, and electronic status indicators.
6. Is this buzzer suitable for OEM applications?
Yes, this active piezo buzzer is suitable for OEM and B2B projects that need a compact 12V sound alert component.
7. Why choose a piezo buzzer for alerts?
A piezo buzzer offers reliable sound output, low power use, compact size, and long service life for alert and notification systems.
8. What are the benefits of an active buzzer over a passive buzzer?
An active buzzer is easier to use because it includes a built-in oscillator, so it only needs a power supply to generate sound.
9. Is this 23x12mm buzzer easy to install?
Yes, the 23x12mm compact size and active design make this 12V piezo buzzer easy to integrate into many electronic products.
